    Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power

    Ask Lasest Price
    Brand Name : JUNSON
    Model Number : JS-306
    Certification : CE/FCC
    Price : US$2.39-5.00/cps
    Payment Terms : T/T, paypal or western Union in advance
    Supply Ability : 5,0000pcs per month
    Delivery Time : 2-5 working days after received your payment
    • Product Details
    • Company Profile

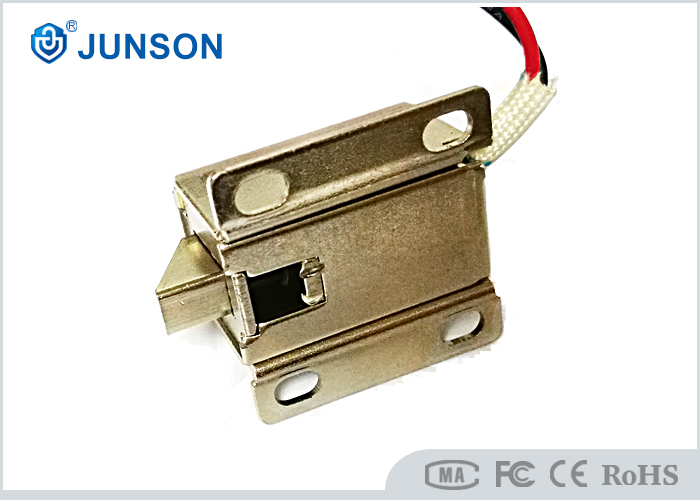

    Smallest solenoid lock magnetic cabinet locks for any kind of locker , lower power


    Smallest Electric cabinet lock, solenoid lock for any kind of locker, lower power

    Model: JS-306

    Junson's smallest electric cabinet lock was specail design for small locker, auto kitchan cabinet . this lock was selled in Switzerland and Germany.

    Specifications:

    Lock Dimension27*29*18mm
    Lockpin length5mm
    Working TypeFail secure / locked when power off
    Materials:Steel housing / fine copper coils
    Voltage12V DC
    Working Current:0.4A
    Consuming power4.8W
    DC Resistance28Ω±10% at 20℃
    Duty cycleElectrify 25%
    Open time1S
    Continue power on≦15S
    Operation temperature-5℃ -55℃
    Operation Humidity5-85℃
    AvailableAll kind of Cabinet
    Weight:0.05kg/pcs
    Packing:100pcs/ carton
    Carton size:32L*22W*16H (cm)


    Main Feature:

    Electronic characteristicsForceStroke 0mm ≥300gf (incipient value)
    Stroke 5mm ≥80gf (incipient value)
    Residual magnetismafter DC12V applied shall be return at weight of Iron rod 5gf (perpendicular direction)
    Insulation resistanceBetween coil and frame DC500V normal temperature /humidity,100MΩ
    Withstand voltageBetween coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA
    Temperature riseAfter DC12V applied by resistance method 65 deg Max
    LifeRepetitious operation for 0.5 million cycle (continuous at DC12V)
    Lead-wire strengthadding 0.5kgf (random direction) not chip off


    Lock deminsion drawing:





    Quality Guarantee:

    Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
    warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
    please browse our service center.
